358 Welded Mesh High Security Fence

Puma is the ideal choice if you are interested in finding new supplier of wire mesh fence and security fences from China. We offer 358 welded mesh high security fencing products for worldwide importers / wholesalers / distributors with consistent quality products and services.

"358" comes from its measurements 3"×0.5"×8 gauges which equates to approx. 76.2mm×12.7mm×4mm wire diameter in metric. 358 mesh is a kind of Weld Mesh Fence extremely difficult to break through, and difficult to climb. It is well-known as High Security Fencing and high-strength Anti-Climbing Fencing. 358 Mesh Panels can be supplied in Curved Panels (3D and 2D).

Material:
Low carbon steel wire, hot dip galvanized, or plastic coated.
Fence Height:
1.8m, 2m, 2.4m, 2.7m, 3.0m, 4.0m, 5.2m

Mesh size:
76.2mm x 12.7mm
Horizontal Wires:
4mm --6mmx 12.7mm centers

Vertical Wires:
4mm --6mmx 76.2mm centers
Post Centers: 2.5mm

Application

1.Bridge anti-climb guarding & guard safety screening
2.Psychiatric hospital security fencing
3.Prison security fencing
4.Factory machine guards
5.Walkway security fencing
6.Airport security fencing
7.Shipping Port Security fencing
8.Electrical sub-station fencing
9.Gas pipelines security fence
10.High security living area and private field fence

Well Sold 358 Mesh Netting Models

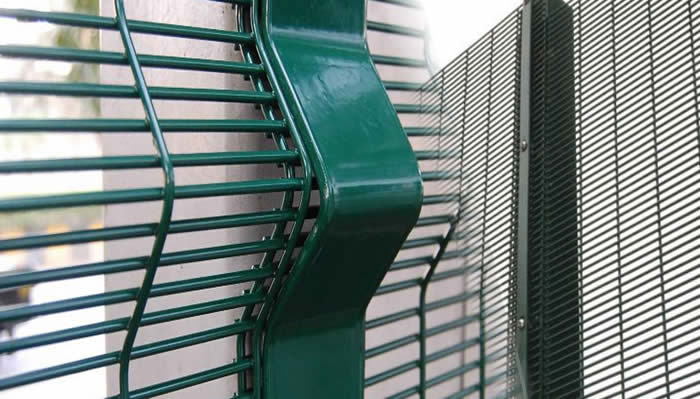

3D Curvy Welded 358 Mesh Fence

Panels:
Heavy Hot Dipped Galvanized 358 Mesh Fence
Green PVC Coated Steel 358 Mesh High Security Fencing

• Heights: 2m and 2.4m
• Horizontal Wires: 4mm, Single or Double Wire; 12.7mm centres
• Vertical Wires: 4mm; 76.2mm centres
Mesh Style: 358 Welded Mesh

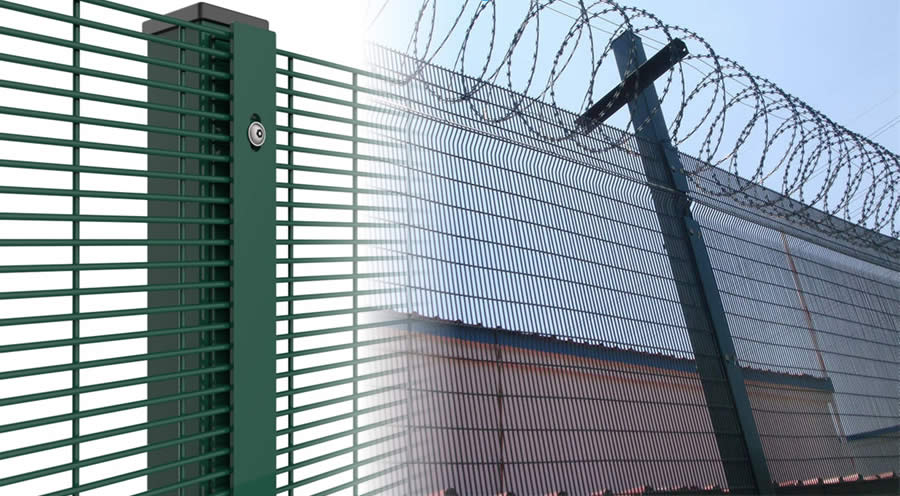

Razor Wire Tops: Optional.
Heigth of the fence: 2m and 2.4m with another 0,5 height for razor wire.

We supply in full sets ( one set including one fence panel, one post and its accessories).
Colour range choices: Green (RAL 6005)

Bow Top 3D Curved Steel Fence for South Africa, Mesh Style 358 Welded Mesh, Wire Diameter 4mm

358 Mesh Fence Specifications for Export

Opening mm	Wire Dia mm	Width mm	Height mm	Post Height mm	Post type mm	Fitting
1/2”x3” 12.7x76.2	3.0 4.0 5.0	2000 2200 2500	1000 1200 1500 1800 2000 2200 2400 3000	1400 1600 2000 2300 2500 2800 3000 3800	Square Fence Post 60x60x2/2.5 80x80x2.5/3.0	Flat bar Metal Clips

Anti-Climbing 358 Security Fencing Projects

358 High Secure Mesh for Electrical Substation and Outdoor Electric Utilites

358 mesh, common welded mesh and chain link fence can all be used for electric transformer and substation facilities construction.

Due to the special design, 358 mesh system is very hard to break, and more secure than other wire mesh fences. Hence, 358 mesh is popularly used in electrical sub-station security guarding.

Outdoor Electrical Power Substation Fencing Project is composed with:
358 welded mesh panel, steel posts, barbed wire or razor wire and other accessories.
Height of Fence Panels: Excluding barbed wire, shall be minimum 1.8m. Commonly above 3m.
Barbed Wire: The mesh panels shall be topped with not less than three strands of barbed wire.
Based on the "V" shape post supported barbed wire, this system offers economically priced perimeter security protection.

Material: Low carbon iron wire, galvanized wire.
Clamps: steel or plastic.
Flat mesh panel:
Height(m): 2.03, 2.23, 2.43
Width(m): 2.5 or 3.0
Hole opening(mm): 76.2x12.7mm for heavy 358 type, or 50*100, 50*150 welded common mesh type.
Wire diameter(mm):4-5

Post with V arm to form Y shape Post for attaching concertina razor wire coils.
Square post(mm):60*60*2, 60*60*3.
Rectangular post(mm): 60*80*3.

Installations

Installed with Square Section Steel Fence Posts:
Metal steel posts powder coated for anchor bolts fixing provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust. Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplated for fixing to a concrete base, and/or cranked to receive another panel or for razor wire.

Fixing with Continuous Clamp Bar
The most secure method of securing fence panels to posts. A continuous 40 x 6mm flat bar clamps the mesh panel to the post, using Galvanised M8 Bolts. The posts are secured from the inside of the fence by means of anti-vandal and tamper resistant nut.

Related Products: Fence Posts, Y Post Support, Barbed Wire, Razor Barbed Wire, Concertina Wire Loops

Stainless Steel Concertina Barbed Tape 358 Security Fencing

Fencing materials:

Fencing Top:
Tape, stainless steel, concertina barbed
Loop 965mm OD 11m

358 security fencing panel
Invincible 358 traditional high security vandal resistant mesh panels
Panel size: 4x2.50 m
Finish: Powder coating in colour RAL 6000

Steel Posts

Installation:
Welded Mesh Fencing to external wall Top Security Fencing
Supply and install fencing posts at 2500 spacings, bolt fixed to the existing boundary wall
Including all fixings/accessories necessary

Related Products

Welded mesh, posts, concertina razor wire, razor barbed wire, barb wire.
