High tensile FlatWrap Razor Wire Coils

The razor wire flatwrap is a flat spiral coil formed by clipping the concertina razor wire loops. This flattened wire is mainly used as fencing/ barrier lines mounted on existing metal fence tops. Standard height is 450mm, 730mm and 980mm, or 500mm, 700mm, 900mm. Various sizes available.

The flat razor wire strips or ribbons stay within the overall dimensions of the fencing and looks less aggressive. It is preferable for most public places security fencing applications.

Well Sold Flat Wire Models

Stainless Steel Flat Wrap Razor Wire

BTO-10 Barbed Flat Wrap Razor Wire, SS Grade AISI 430, in 45cm coil height

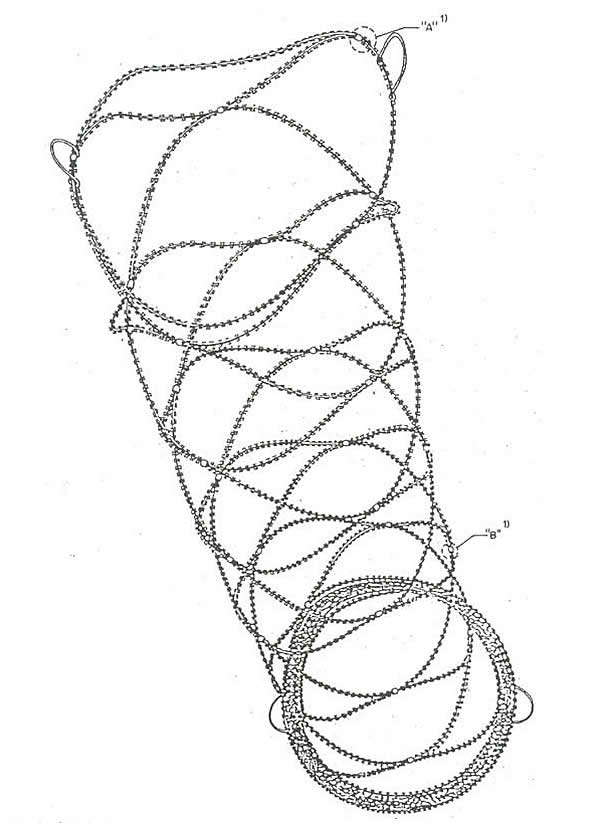

Drawing reference:

Details:
45cm Flat Wrap Razor Wire, Stainless Steel AISI 430 ( outside sheet stainless steel, inside wire hot dipped galvanized)
Coil height: 45cm
Weight: 0.75kg / m
Coil length: 16m x 6 sheets, 96m
Barb type: BTO-10
Inside wire: 2.50mm (-0.00, +0.10mm) ,tensile strength: 160kg/mm2 (min), zinc plate: hot dipped galvanized steel wire (60gr zinc coat)
Outside sheet: 0.50mm (-0.00, +0.10mm) Stainless Steel AISI430
90cm Flat Wrap Razor Wire, Stainless Steel AISI 430 ( outside sheet stainless steel, inside wire hot dipped galvanized)
Coil height: 45cm
Weight: 1kg /m
Coil length:16m x 5 sheets, 80m
Barb type: BTO-10
Inside wire: 2.50mm (-0.00, +0.10mm) ,tensile strength: 160kg/mm2 (min), zinc plate: hot dipped galvanized steel wire (60gr zinc coat)
Outside sheet: 0.50mm (-0.00, +0.10mm) Stainless Steel AISI430
60cm Flat Wrap Razor Wire, Stainless Steel AISI 430 ( outside sheet stainless steel, inside wire hot dipped galvanized)
Coil height: 45cm
Weight: 0.850kg / m
Coil length:16m x 6 sheets, 96m
Barb type: BTO-10
Inside wire: 2.50mm (-0.00, +0.10mm) ,tensile strength: 160kg/mm2 (min), zinc plate: hot dipped galvanized steel wire (60gr zinc coat)
Outside sheet: 0.50mm (-0.00, +0.10mm) Stainless Steel AISI430
Packing : Wrapped with cardboard carton

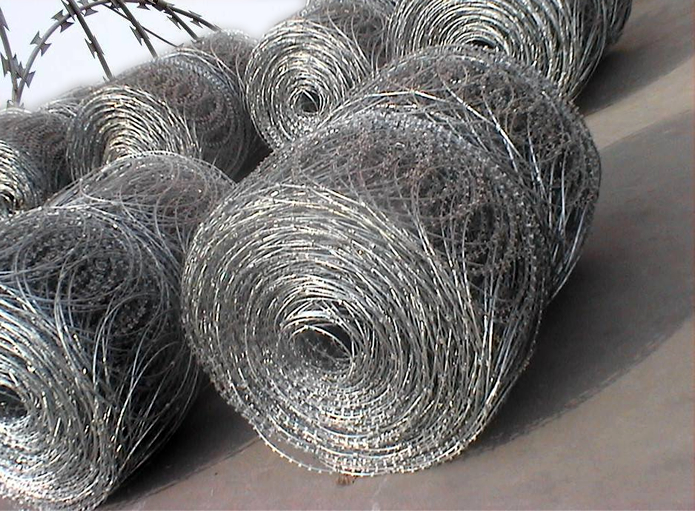

High Security Flatwrap Razor Barbed Wire Roll, Ø 600 mm

55 Loops Razor Wire Flatwrap

Details:
Core Wire Diameter : Ø 2,50 mm
Blade Type : BTO 12
Tape Thickness: 0,50 mm
Galvanization Rate : 200 gr / m² ( min. )
Tensile Strenght : 160 kg / mm² ( min. )
Loops : 55 Loops
Clips : 5 Clips / Loop

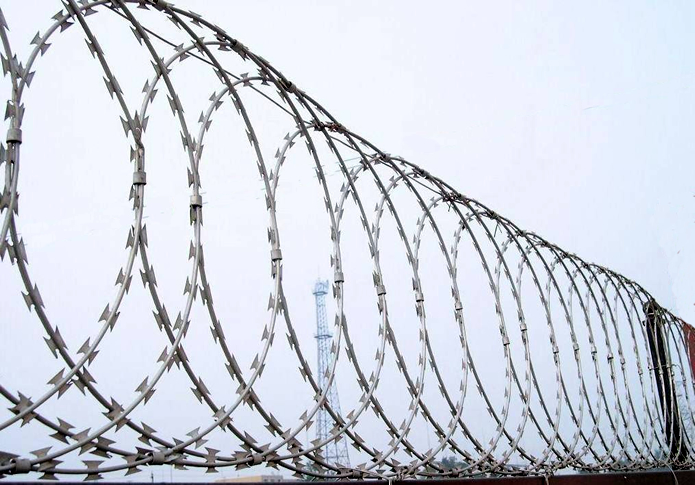

Sharp Blades Flatwrap Razor Barbed Wire BTO - 12 for Electric Communication Tower Security Fencing

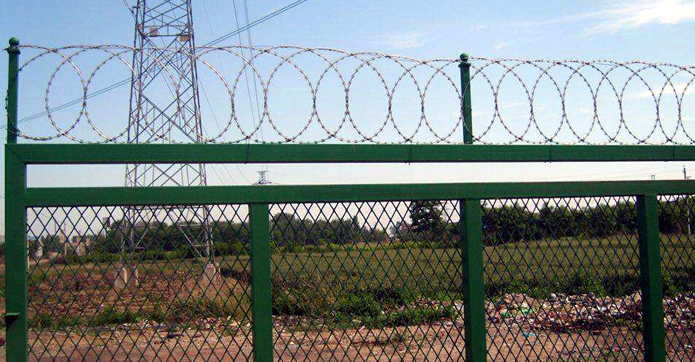

Flatwrap Razor Barbed Wire BTO - 12, Hot Dip Zinc Plated, Clipped by Steel Clips to form a Flat Panel Height 730mm,
Attached along Top Rail of Framed Metal Expanded Steel Fencing

Flat Razor Wire Panel for Pakistan & Philippines

Razor Wire Type: Flat Coils
10m to 15m Per Roll,
OD: 600, 750, 900mm;
Blade Type: BTO - 12, 22

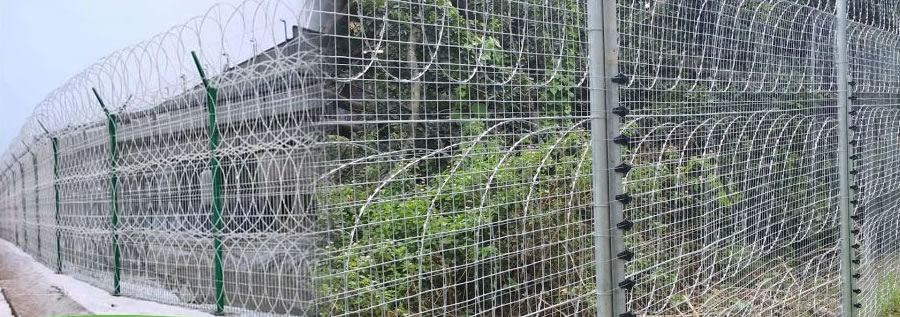

Y Post Support Flatwrap Razor Wire, Used with Welded Mesh Fence Panels for Reinforcement Security

Blades Applied for Producing Flatwrap Razor Wire Panels:

Type	Blade Style	Thick-ness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO - 10		0.5 ± 0.05	2.5 ± 0.1	10 ± 1	13 ± 1	25 ± 1
BTO - 12		0.5 ± 0.05	2.5 ± 0.1	12 ± 1	15 ± 1	25 ± 1
BTO - 18		0.5 ± 0.05	2.5 ± 0.1	18 ± 1	15 ± 1	35 ± 1
BTO - 22		0.5 ± 0.05	2.5 ± 0.1	22 ± 1	15 ± 1	36 ± 1

Standard Flatwrap Razor Barb Wire Coil Sizes

Height	Length	Weight
500 mm (20 in)	15 m (50 ft)	9.5 kg (21 lbs)
700 mm (28 in)	15 m (50 ft)	13 kg (29 lbs)
900 mm (36 in)	15 m (50 ft)	14.5 kg (32 lbs)
