Galvanized Barbed Wire, IOWA type TrAditional Barb Wire, Not Razor TYPE

We are major wholesaler and barbed wire supplier for world trading companies, importers, distributors and suppliers of fencing products. We supply barbed wire made of hot dipped galvanized wire, electric galvanised wire, or PVC coated wire.

Barbed Type Iron Wires are made of material Q195 steel, commonly in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).

IOWA type barbed wire is the most popular fencing wire made in three processing methods: traditional twisted, positive / straight twisted, reverse / negative twisted. Strands can be single or double. The wires are braided with a system of constant torsion, with barb prongs interlaced in the wires. As a traditional fencing product for protection and privacy, IOWA barbed wire is widely used in civil and military life.

Common Gauge of Strand and Barb:
1.8X1.8mm / 2.0X2.0mm / 2.2X2.0mm / 2.2X2.2mm / 2.5X2.0mm / 2.5X2.2mm / 2.6X2.2mm / 2.7X2.2mm / 2.8X2.2mm /
3.0X2.0mm.
Barb Spacing: 3''-6'.
Barbed Wire Roll Length:200m/250m/400m/500m/600m.

Barbs, Points, Strands and Barb Spacing:

Points, Barbs Space and Wire Strand

Finishes include Electro-galvanized; Hot dipped galvanized; and plastic coating.

Zinc Coating Variety:
Material: Iron wire Q195
Zinc coating weight: 60g per sm/240g per sm/12g per sm
Applied to Barbed Wire Ranges:
Strand wire diameter:1.5mm-3mm
Barbed wire diameter:1.5mm-3mm
Barbed space:100mm-140mm
Coil weight: 5kg-100kg

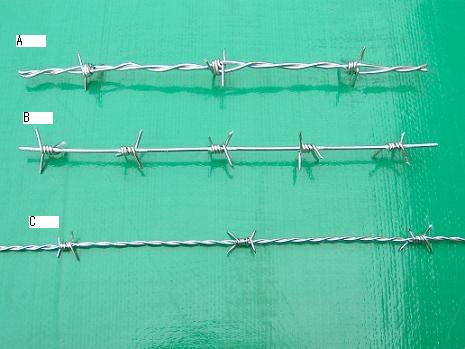

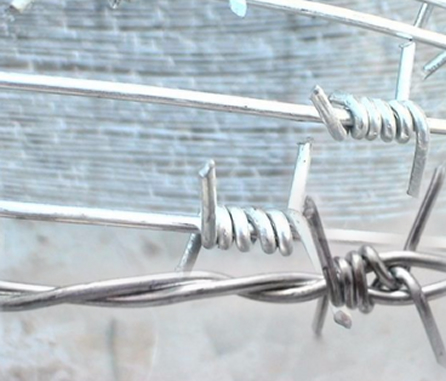

Twisting Styles


Single or Double Wire Strand Twisted in Straight and Reverse Twisting, or Traditional Twisting.


Specify an Order for (Traditional) Barbed Wire:
Please provide the following requirements:
Wire Diameter
Zinc Coating Layer
Barb Distance
Barb Wire Length
Weight of the Roll
Height of the Roll
Wire Strands
IOWA Type
Coil Length

Well Sold Models

Export Countries

ASTM INTERNATIONAL STANDARD / A121 Hot Dip Galvanized Barbed Wire for Jordan, Oman, and Middle East Countries
Electro Galvanised Barbed Wire for India

Reverse Twisted Low Carbon Steel Galvanized Barbed Wire for Paraguay, Chile, Peru, Central and South American Countries

Barbed wire for customer in Mexico ( 14#x16#, double twisted,electro-galvanised, 25kgs/roll. )

Anti-climbing barbed wire, single barbed wire or single strand barbed wire for Yemen

For suppliers in Australia (High tensile wire of at least 2.5mm with a long barb of around 20mm, barbs spaced at around 65mm.)

Hot Dip Galvanized Steel Wire for Korea, Straight and Reverse Twisted

12# Gal. barbed wire for livestock fencing construction in USA

Different types of barbed wire fences to major importer and distributor of steel fencing product in USA market.
HDG ( Hot Dip Galv. ) Barbed wire, distance between two barbes: 10-15cm, 13kgs/m, to Korea

Concertina Barbed Wire with Regular Barb Wire, No Razor Wire

High Tensile Single Strand Concertina Barb Wire
Border Fencing Concertina Barbed-wire coils - regular barbed wire, single strand, for England

Specifications:

Single high tensile steel line wire
Diameter :3.0+/-0.05mm
Tensile strength :1235N/m2
Low Carbon Steel Barbing Wire:
Diameter: 2.0mm+/-0.05mm
Tensile Strength :350N/m2
Length of barbs:13-20mm
Distance between Barbs:60mm+/-16mm
Galvanization :
Line Wire:275g/m2
Barbing Wire:240g/m2

C Style:

Hot Dip Galvanized Zin Coated Barbed Wire

Zinc coatings:
2.00mm 70g/m2
2.50mm 80g/m2
2.50mm 90g/m2

Roll Line Wire
Mass kg / Diameter mm
50.0 / 2.0
33.0 / 2.0
25.0 / 2.0
17.5 / 2.0
10.0 / 2.0

50.0 / 2.5
35.0 / 2.5
25.0 / 2.5
14.8 / 2.5

ASTM International Standard Barbed Wire Roll of Two Strand Wire


Two Strand Wire Galvanised for Oman and Jordan
IOWA Barbed Wire, 150mm barb spacings, all Barbs 2.00mm diameter, Hot dipped galvanised before manufacture. Market: For Jordan, Oman and regional markets.

Barbed Wire Roll in 50 Meters
Barb Cross Sectional Width: 0.080 Inches Nominal
Wire Cross Sectional Width: 0.099 Inches Nominal
Content within each unit package: 80 ROD
Single Wire Cross-Sectional Shape: Round
Barb Cross-Sectional Shape: Round
Barb Point Quality: 4
Center to Center Distance between Barbs: 5.000 Inches min and 6.000 inches Maximum
Feature Provided: Two-Strand Wire
Material: Steel
Surface Treatment: Zinc

The following standards shall be considered as guidelines. Other international standards are acceptable.

ASTM A 121-92 (Specification for Zinc Coated (Galvanized) Steel Barbed Wire, or equivalent

ASTM A 641-82 (Specification for Zinc Coated (Galvanized) Carbon Steel Wire, or equivalent

ASTM A 475 (Specification for Zinc Coating Weight for (Galvanized) Steel Barbed Wire, or equivalent

High Tensile Hot Dip Galvanized Barbed Wire and Binding Wire, Heavy Zinc Coated

Rolls of Barbed Wire with the following specs:

Manufactured from zinc coated (galvanized) steel wire

Double twisted line wire with four (4) barbs

Line wire diameter of 2.5mm

Barbed wire diameter of 2.0mm

Barb spacing of 10cm

Minimum tensile strength per wire of 380 Pa

Hot dip galvanized to a minimum of 210 grams/m2

Roll length: 200 meters


Supplied with Binding Wire with the following specs: in rolls:

Manufactured from zinc coated (galvanized carbon steel wire)

Diameter of approximately 1.4mm

Hot dip galvanized to a minimum of 180 grams/m2

Shall be supplied in tolls of 25Kg

Packing: Rolls of barbed wire and binding wire wrapped in waxed paper, then be packed on four way entry timber pallets suitable for export transportation. The rolls shall be properly strapped to the pallet to avoid damage to the rolls.

Electro Galvanised Barbed Wires

14 Gauge Barbed Wire, Reverse Twisted
Electro Galvanized BarbWire or Plastic Coated Galvanised, Wire Gauge: 14BWG, Barb Distance:12.5CM, barb Length:1.8CM
Packing in 250m, 500m, 400m and 160m rolls; Supplied to INDIA

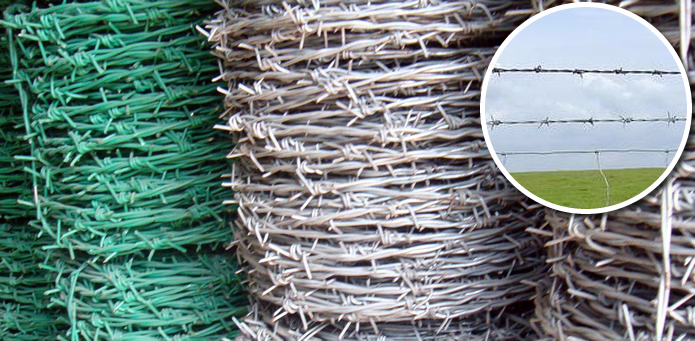

Low Carbon Steel Barbed Wire, Electro Galvanized, Reverse Twisted:
Main Market: Paraguay, Peru, South American Countries
Surface: Electro galv. or green pvc painted galv.
Low carbon steel galvanized barbed wire 1.5x1.5mm, REVERSE TWIST (8 times twisted), 6" distance between barbs , 4 point barbs, 200M coils;
Individual packing (printed carton) to be offered , separately.
Low carbon steel galvanized barbed wire 1.6x1.6mm, REVERSE TWIST (8 times twisted), 6" distance between barbs , 4 point barbs, 200M coils.

Aluminized Steel Barbed Wire, Single Stranded

Aluminized Steel Single Stranded Barbed Wire
Heavy Duty IOWA High Tensile Aluminium Coated Alloy Barbed Wire for Security Farming Fence.

Material: Aluminium Wire or Aluminized Steel Wire
Color: Silver or Other Colors
Surface Treatment:Aluminium Coated
Barbed Wire Type:Single Strand Wire

Fencing Projects

Galvanized Barbed Wire offers a great property of corrosion and oxidation resistance. The high tensile steel wire material allows good spacing between the fencing posts. Barbed wire is widely used with steel posts or above mesh panels (knotted, woven or welded mesh) to form a fencing system or obstacle.

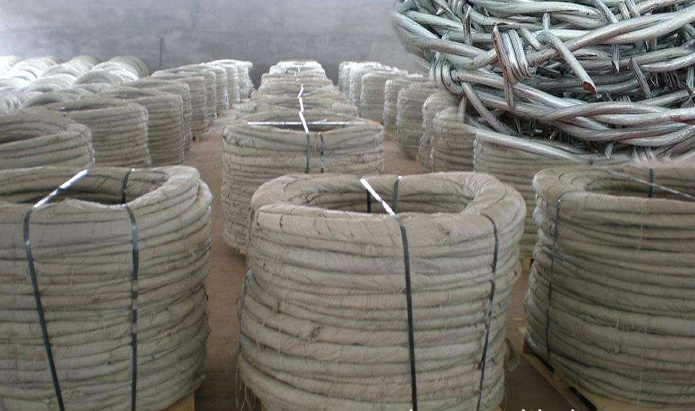

Two Strand Wire Barbed for Agricultural Fencing

Hot dipped galvanized double twisting stranded barbed wire roll, 12x12mm with 4" barb intervals. Roll length 400 meters. Wholesale to ship to South America for agricultural fence.

Livestock Fencing Hot Dipped Galvanised Fencing Wire
Hot dip (zinc plating) galvanised barbed wire with strand 1.72 mm, barbed 1.5 mm, pitch 5" for Mexico Market. To fasten to the top of wooden post for ranch fence.

16 Gauge Barbed Wire Cattle Fencing Export to Africa

Hot dipped galvanized barbed wire, reverse twisted, for African Countries, Specification : 1.6mm thickness wire ( 16 gauge ), with 90gsm zinc coating, the barbed length of 2.5cm fixed at every 12.5cm length.

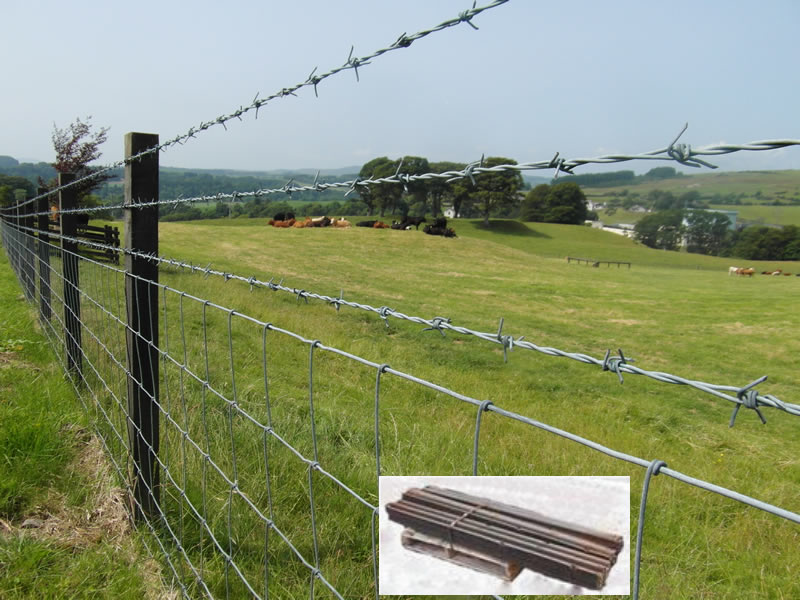

Cattle Farm and Horse Farm Field Fencing

Steel Post Barbed Wire, Used with Fixed Knot Wire Mesh Panels to form field fencing for cattle and horse farms.

U Post Picket Fencing with Both Barbed Wire and Barbed Tape, Fence Hardwares for supply to American Oil Field Companies


Traditional barbed wire is used often with concertina razor wire or barbed tape to construct a multi-form fencing system.
Below is a Hardware Fence ( including Barbed Tape, Concertina; Barbed Wire; U Fence Post / Pickets, Two Sizes; Barbed Wire Handling Gloves )

Description:
Rolls, Wire Razor/Concertina (rolls of Concertina wire (NSN 5660-00-921-5516);
Wire, Barbed (NSN 5660-00-224-8663) 400meter roll.  Other size rolls are acceptable as long as 4,800 meters of barbed wire is provided;
Pickets, Long, 6-foot (NSN 5660-00-270-1510);
Pickets, Short, 3-foot (NSN 5660-00-270-1589);
Gloves, Barbed Wire Handler, Cut / Puncture Resistant (NSN 8415-00-926-1674)

Item No. 1

Barbed Tape, Concertina
Data
Material: Steel
Surface Treatment: Zinc
Special Feature: Extended Coil Length 50.0 Feet
End Item Identification: Combat system support equipment

Item No. 2

Barbed Wire
Material: Steel
Surface Treatment: Zinc
Single Wire Cross-Section Shape: Round
Wire Cross Section Width: 0.099 Inches Nominal
Features Provided: Two-strand wire
Barb Cross-Section Shape: Round
Barb Cross-Section Width: 0.080 Inches Nominal
Barb Point Quantity: 4
Center to Center Distance Between Barbs: 5.000 Inches minimum and 6.000 Inches Maximum
Content within Each Unit Package: 80 Rods

Item No. 3

Post, Fence, Metal
Parameters
Overall Length: 72.000 inches nominal
Material Thickness: 0.125 inches nominal
Depth: 1.438 inches nomimal
Fence Width: 3.062 inches nominal
Pointed Penetrating END: included
Anchor Plate: Optional
Extension Clamp: Optional
Material: Steel
Designing Style: U Shape Post
Surface Treatment: Painted

Item No. 4

Barbed Wire Fencing Post

Post, Fence, Metal
Parameter
Overall Length: 32.000 inches nominal
Material Thickness: 0.125 inches nominal
Depth: 1.438 inches nomimal
Fence Width: 3.062 inches nominal
Archor Plate: Optional
Spade: With
Material: Steel
Design Style: U Shape Post
Surface Treatment: Painted

Item No. 5

Barbed Tape Wire Handling Gloves

Gloves, Barbed Tape Wire Handlers
Size: Universal
Cloth: Flannel Lining

Barbed Wire Specifications



Type
Wire Gauge (SWG)
Barb Distance (cm)
Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
10# x 12#
7.5-15 1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#


PVC coated barbed wire; PE barbed wire
before coating
after coating
7.5-15 1.5-3
1.0mm-3.5mm
1.4mm-4.0mm
BWG11# - 20#
BWG8# - 17#
SWG11# - 20#
SWG8# - 17#

PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request


Unit Length:
Gauge of
Strand and Barb in B.W.G.
Approximate Length per Kilo in Meter
Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386

Roll Length and Barb Spacing:

Wire Gauge  Roll Length  Barb Spacing
17GX17G 50M,  100M,  200M,  300M,  400M,  500M  etc as request   4" ,  5",  6"
16.5GX17G
16.5GX16.5G
16GX16G
14GX14G
12GX14G
12GX12G
14GX16G

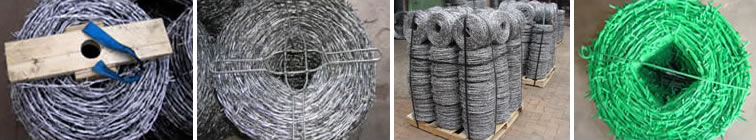

Packing Terms

Barbed Wire is supplied in coils.
5kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside;
25kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside;
50kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside;
or according to your requirements.

Related Products

Fence Posts, Mesh Fabrics, Tension Wire, Binding Wire
