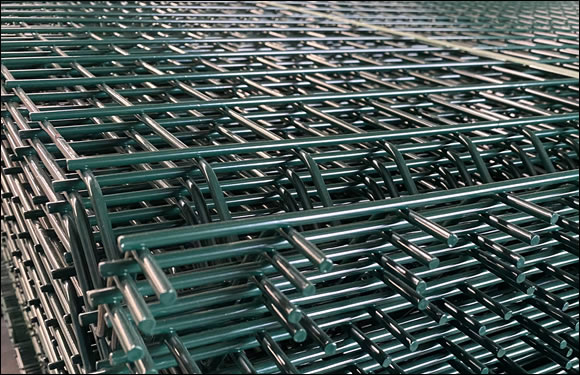

Welded Mesh Fence HDG Powder Coated Green Colour

Welded mesh fence hot dipped galvanized powder coated dark green color is the most durable and welcome security fencing choice due to three reasons: the color coated wire mesh fence fitting in harmonizingly with the landscape, the excellent corrosion protection of HDG ( hot dip zinc galvanizing) + Powder coating layer, and strength of the firmly welding structure. The powder coating can be plastic, vinyl or polyester.

We supply HDG welded mesh fence panels, posts, barbed wire and all accessories for building up a HDG and powder coated fencing system. Anti-Cutting, anti climbing small hole weld mesh is used for high security fencing system topped with sharp blade barbed wire.

Well Sold Welded Fence Models

Welded Mesh HDG Galvanized Fencing for Australia Fencing Project

High Security Welded Mesh Fence Designs

Installation of Security Fencing with Tension Band and Brackets

Installation of Razor Blade Barbed Wire to the Welded Wire Mesh Panels for High Security

Weld Mesh Galvanized Fencing HDG + Powder Coated Green

125x25 mm mesh opening, 5 mm wire diameter
Finish: HDG+Polyester Powder Coated Green Colour

Fence Post: 73.0x5.16mm Thick GI Pipe, HDG+Powder Coated Green Colour

Post Cap 73.0 diameter
Finish: HDG+Powder Coated Green Colour

Tension Band for Pipe 73 dia: Finish: HDG+Powder Coated Green Colour

Barbed Wire Extension Arm, length ( Single V) 450 mm height, HDG+Powder Coated Green Colour

M12x50 bolt and nut
Bracket: 70x7mm thickness Galvanized Iron

Gate:
Wire Mesh 2.960x2.5 mtrs. Height
Finish: HDG+Polyester Powder Coated Green Colour

Barbed Wire: Razor blade type
Three coils along fences, HDG galvanized
Blade type: BTO-22

HDG Curved Welded Wire Mesh Fence

Curved welded wire mesh fence, barbed wire, single V extension arm, posts, tie wires and post caps.

Wire mesh, 1 piece bend 3.85 mm
50 x 120 mm opening
HDG Galvanized Powder Coated
3 – 10’ panels

Post:
6’ post height
Size: 2x2x.12
Finish: HDG Galvanized PVC Powder Coated

Details for barbed wire
Diameter - 1.7mm
Distance between tines - 12.7cm
Pick diameter - 1.47mm
Tensile strength - 620-825 mpa
Zinc layer - 198 g/m2 HDG according to ASTM A-641, ASTM A
Theoretical weight per roll 17.35 kg
Tensile strength 350kgf
Roll length 400 mtr
