SOFT BLACK ANNEALED BINDING WIRE

Soft Annealed Quality Black Wire is mainly used as binding wire, fencing wire, mesh wire in various industries. Annealed wire is made of Q195 wire rod through wire drawing into black wire, then goes through oxygen-free heat annealing. Black annealed wire features good flexibility, uniform diameter and easy bending in uses. As binding wire, it offers better tension and twisting force, compared with other tying wire materials.

Wire Diameter in Gauge and MM, for Black Annealed Iron Wire
Size	SWG	BWG	The metric system
8#	4.06	4.19	4.00 mm
9#	3.66	3.76	-
10#	3.25	3.40	3.50 mm
11#	2.95	3.05	3.00 mm
12#	2.64	2.77	2.80 mm
13#	2.34	2.41	2.50 mm
14#	2.03	2.11	-
15#	1.83	1.83	1.80 mm
16#	1.63	1.65	1.65 mm
17#	1.42	1.47	1.40 mm
18#	1.22	1.25	1.20 mm
19#	1.02	1.07	1.00 mm
20#	0.91	0.89	0.90 mm
21#	0.81	0.813	0.80 mm
22#	0.71	0.711	0.70 mm

Annealed Binding Wire Models for Export

Export Specifications and Forms of Supply

Black Annealed Wire
Wire Diameter	Normal Tensile Strength	Supply Styles
0.2mm-0.5mm	600-700N/mm2	Coil wire rolls, plastic spool winding wire, cut wire strips, looped wire, u wire
0.6mm-1.0mm	500-700N/mm2	Coil wire rolls, or plastic spool winding wire, cut wire strips, looped wire, u wire
1.1mm-1.4mm	400-600N/mm2	Coil wire rolls, or plastic spool winding wire, cut wire strips, looped wire, u wire
1.4mm-2.0mm	350-450N/mm2	Coil wire rolls, or plastic spool winding wire, cut wire strips, looped wire, u wire
2.0mm-4.0mm	350-450N/mm3	Coil wire rolls, or plastic spool winding wire, cut wire strips, looped wire, u wire

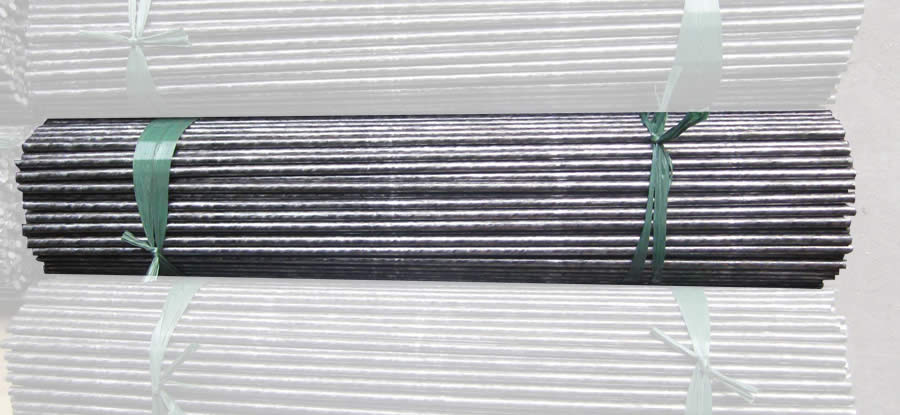

Straight Wire Cut to Size

Common Wire Dia: 2 gauge - 30 gauge(0.3mm-7mm)
Cut Length: 2" - 200"
Material: Soft annealed, or galvanized iron.
Package: 2kgs, 2.5kgs,10kgs cartons or as per customer's requirements.

Cut to Length Binding Wire
Annealed Steel Wire Ties, Dark Annealed, Cut to Size Wire Strips, for Fencing Tying Uses

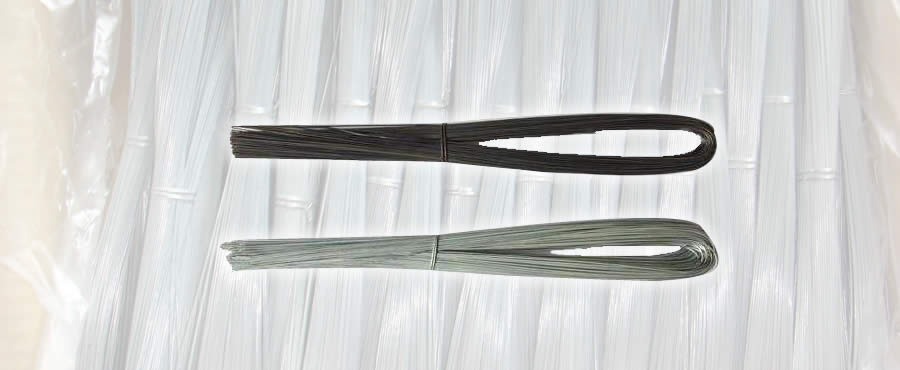

U Binding Wire

Wire Dia: 18Gauge - 22Gauge (0.7mm to 1.2mm).
Material: Electric galvanized iron wire, hot-dip zinc-plating iron wire, black annelded wire.
Length: 25-55cm
Package: 20 or 25kgs cartons.

Annealed Galvanized Binding Wire
Soft Quality Prime Black Annealed Tie Wire 22# Gauge

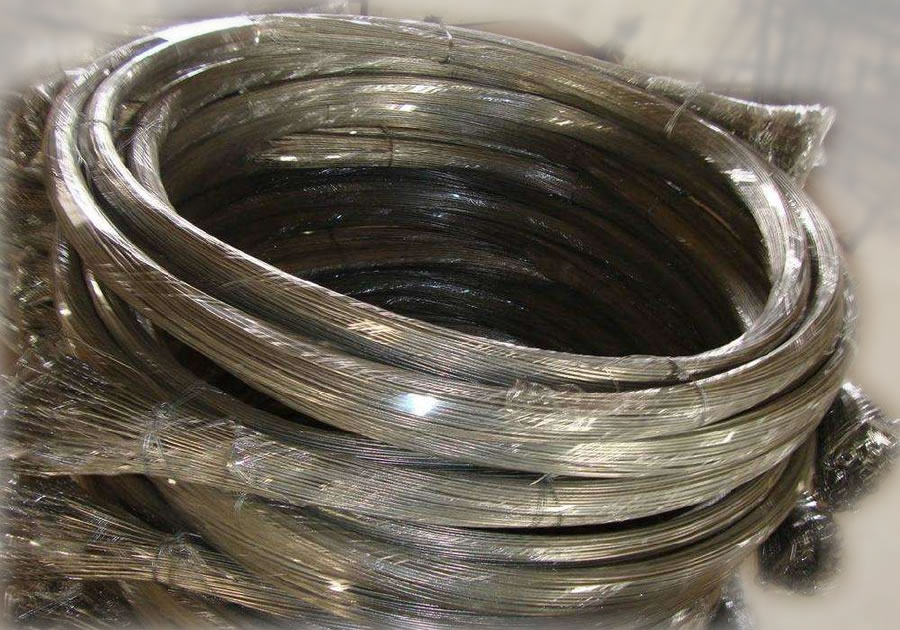

Single Loop Baling Wire

Wire Gauge: 16gauge to 18gauge
Length in inch: 3''-24''
Tensile Strength:
1500 to 1770 N/mm2 - or as per client request.
Elongation: 5 to 8% mini
Breaking Load at loop: 975 to 1050kg mini
Wire Material: Fine low carbon black or bright annealed wire, galvanized wire, stainless steel wire, PVC coated wire
Package:100-250 pcs bundles

Cotton Baling Ties
18 Gauge Bale Tie Wire, for Manual and Machine Binding

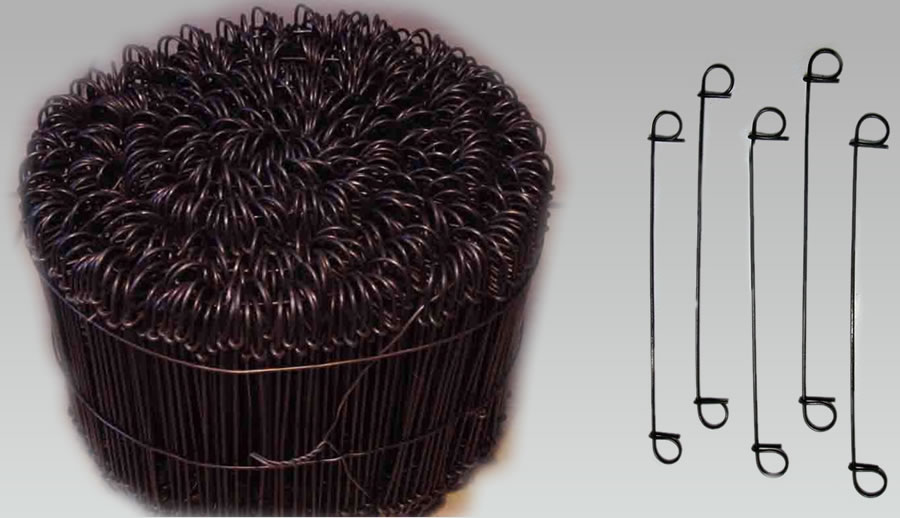

Florist Tying Wire with Loops on Both Ends / Double Loop Wire Ties

Color: Annealed and galvanized, or vinyl coated into yellow, white, bright silver, black, etc.
Diameter: 0.5mm, 0.6mm, 0.7mm
Package: 5kgs roll, 25 kg or 50 kg rolls, pp film inside and hassian cloth outside or pp woven bag outside

Double Loop Ends Binding Wire
3mm Wire Diameter Black Annealed Tie Wire for Garden Tying and Other Uses

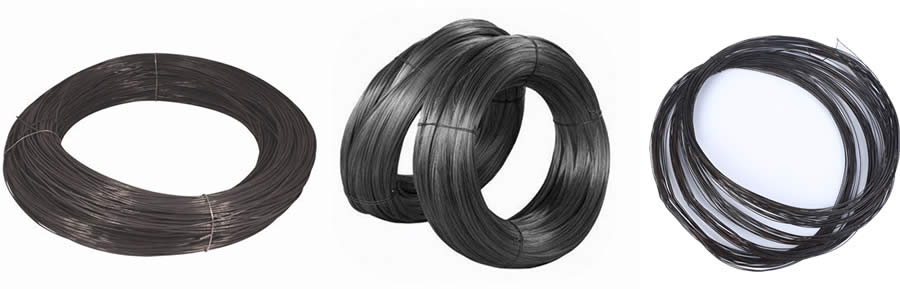

Coil Wire Rolls for Tying

1.2mm Wire Diameter Black Wire
Fencing wire, mesh wire and binding wire

Material: Annealed and galvanized mild steel wire.
Package: Small coils of 5kg, 10kge, 15kg, more.

Automatic Rebar Tying Wire
0.8mm Black Annealed Binding Wire for RB 397 tools or automatic machines
Material: Black annealed wire
Wire diameter: 0.8mm
Weight: 0.4kg/spool.
Wire length: 95m/spool.
Supply Forms: Winding wire on plastic spools.
