Automatic Barbed Wire Machine-Machinery for Double Strand Twisted Barbed Wire Fabricating and Plants

Puma is a Supplier and Exporter of various Barbed wire machinery and production lineto African, South American and Asian Countries. We provide products and services for setting up Barbed Wire Manufacturing Plant to produce Single and Double Twisted Barbed Wire.

Our barb wire machine is of horizontal design, consisting of main unit and all accessories that can be assembled together. Our equipment is safe and reliable in operation, featuring simple and automatic operation, capable of producing barbed wire products with consistent good quality.

Well Sold Product Models for Export

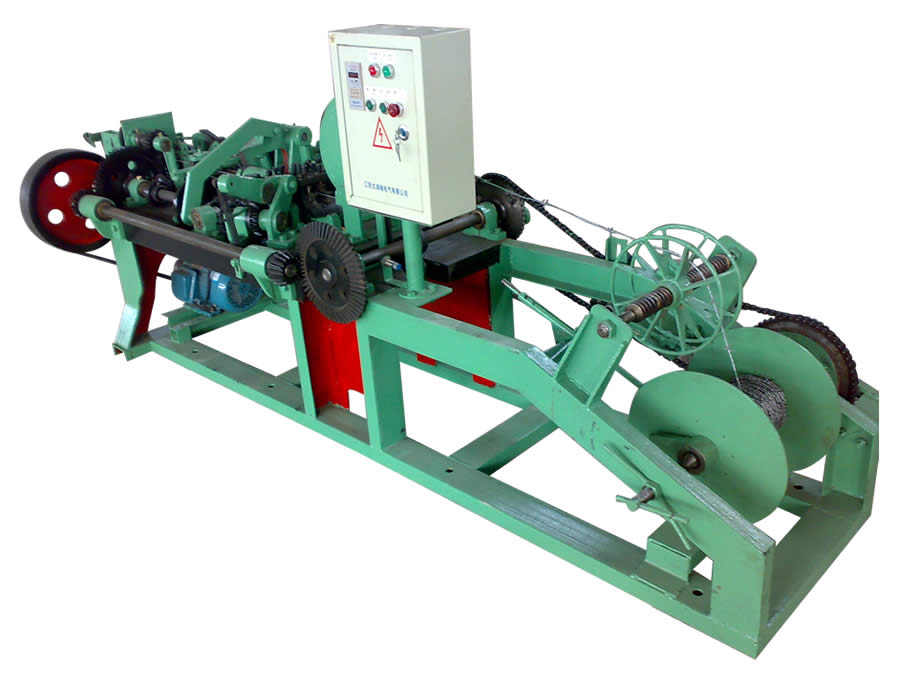

Automatic Barbed Wire Machines (Manufacturing Double Twist Barbed Wire)

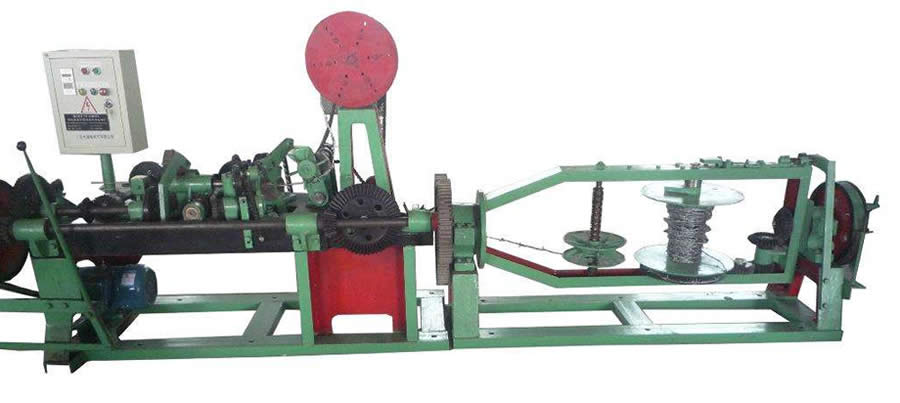

Barbed Wire Machinery Manufacturing Double Twisted Typed Barbed Wire, Export for Chile, Sri Lanka and Etc.

Type: Double Strand Barbed Wire Machine
Automatic Barbed Wire Making Machine for barbed wire with twisted two strand and four barbs.

The machine is supplied with complete set of accessories:
Main unit;
Electric motor;
Starter;
V-Belts;
Pulley;
Wire stands ( four);
Centre piller (one);
Extra bobbin (one).
How Does Our Automatic Machine Work:
This machine is assembled with multiple gears and transmission devices arranged and accurately timed to perform the multiple function without the aid of mamual labour. Simply need an operator stand by and watch the operations till the bobbin is full. Then the machine is stopped and bobbin is replaced & restarted.

Total 5 steps operation:
1,Wire feeding
2,Barbing- Barb making
3,Twistings of wire-strand making
4,Cutting
5, Coiling into bobbins.

This Automatic barbed wire machine is designed for manufacturing 12 Gauge and 14 Gauge Double Strand Twisted Barbed Wires:
1. Double strand line wire 12 gauge, 4 barbs wire 12 gauge, barb spacing 3 inch/ 75mm
2. Double strand line wire 12 gauge, 4 barbs wire 14 gauge, barb spacing 3 inch / 75mm
3. Double strand line wire 14 gauge, 4 barbs wire 14 gauge, barb spacing 3 inch / 75mm

PRODUCTION CAPACITY:
700 Kgs per shift of 8 hours.

ELECTRIC MOTOR: 5 HP. X 1440rpm
SPACE REQUIRED: 15ftX12ft
WEIGHT: 1650 Kgs approx.

INSTALLATION:
Installation of the machine is quite simple and easy.
Two installation tips:
1, Care being taken that the stands of the machine is securely bolted to the foundation;
2, The machine is property aligned and leveled accurately.

Packing: The machine is packed in strong seaworthy wooden cases.

Complete Plant of making Barbed Wire with standard accessories for processing 12 to 17 SWG barbed wire, exported to Pakistan and Bangladesh

Twisted barbed wire machine with accessories:

Optional accessories and spare parts
Processing Materials: Hot dipped galvanized wire
Wire Gauge: 12, 14 SWG, to 17SWG
Barb spacing: 3 inch to 6 inch
After sales service and tech support:
We provide on site installation, trial run and training.
Warranty: Min. 01 Year.
Supply of spare parts for 05 years.

Technical Specifications

Model	PMBM253	PMBM1628
Diameter of Line wire	2.5-3mm	1.6-2.8mm
Diameter of Barb’s wire	2-2.5mm	1.6-2.2mm
Barbs’ spacing	3,4,5,6 in.	4,5 in.
Material(Line wire & barb wire)	Low carbon , hot dip galvanized steel wire
Total weight	1500kg	1100kg
Power	3kw	2.2kw

Barb Wire Twisting Machine Export to Mexico

Production Line for manufacturing high tensile barbed wire

Machinery specification:

Volt: 220V - 440V
Wire diameter: CAL. 12, CAL. 13, CAL. 15.
Strand 1.72 mm, barbed 1.5 mm, pitch 5" and Other Sizes

Reverse Twist Typed Barb Wire Machine Supplied to Turkey

Requirements for the machine are listed below as:

Number of strand wires: 2
Strand wire diameter mm : 1.70 – 2.50
Number of barb wires : 2
Distance between barbs cm : 75 -100
Main Market: Turkey
