Razor BARBED Wire plant

Puma has been exporting machines to set up concertina razor barbed wire production line in various premises. Major importers and distributors of our machinery are from Egypt, Malaysia, Turkey, Brazil and other countries.

Machine Features: Light, easy to operate, high efficient, material saving.

Structure: Two parts: the main machine for producing strip plates by punching sheets, and the coiling machine.

Well Sold Machine Models

Concertina Barbed Wire Punching Machine, Export to Turkey

Automatic Punching Machinery to Produce Concertina Razor Wire
Concertina Barbed Wire Making Machines (Punching Machine), Export to Turkey for Blade BTO-12 OR BTO-22 Razor Type Barbed Wire

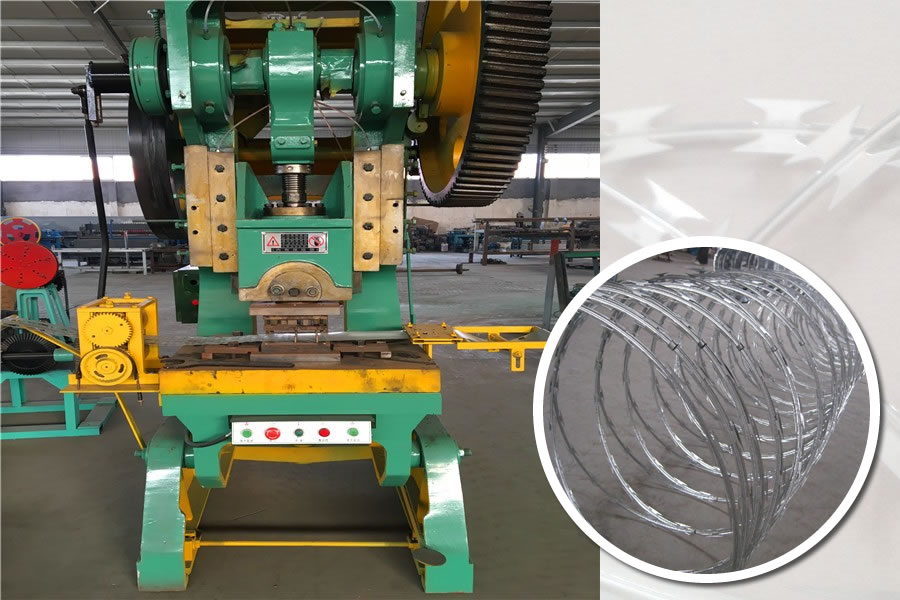

Automatic Razor Blade Barbed Wire Making Machine


Equipment for Manufacturing of Razor Blade Type Barbed Wire, Hot Dip Galvanized. Major Unit Out Size: 1100mmx750mmx1200mm

Market: Supplied to Malaysia trading company and Egypt.

Razor Wire Coiling Devices

Punching Machine Sizes

Model

Five strip/ Nine strip

Voltage

380V, 50Hz or client’s required voltage

Power

2.2kw

Producing speed

220-280m/h

Thickness

0.5±0.05mm

Pressure

25ton/ 40ton

Weight

1500kg/ 2200Kg

Dimension

1100mm×1000mm×2000mm

Coiling Machine Sizes

Voltage

380V, 50Hz,or client’s required voltage

Power

1.5kw

Producing speed

80Kg/h

Wire diameter

2.5mm

Weight

300Kg

Dimension

1100mm×750mm×1200mm

Moulds for Producing Barb Sizes

Barb Length

Barb width

Barb spacing

12±1mm

13±1mm

26±1mm

12±1mm

15±1mm

26±1mm

18±1mm

15±1mm

33±1mm

22±1mm

15±1mm

34±1mm

28±1mm

15±1mm

34±1mm

30±1mm

18±1mm

34±1mm

60±1mm

32±1mm

96±1mm

65±1mm

21±1mm

100±1mm



Overal Diamension

L*W*H:1100mmx750mmx1200mm

Rated Voltage

380V

Power

1.5kw

Producing speed

80kg/h

Weight

300kg



Overal Diamension

L*W*H: 1200MMX1000MMX1900MM

Rated Voltage

380V

Power

2.2KW

Producing speed

220-280m/h

Weight

1500KG



Overal Diamension L*W*H:1100mmx750mmx1200mm
Rated Voltage 380V
Power 1.5kw
Producing speed 80kg/h
Weight 300kg



Coil Dia.(mm) 500 700 960 450
Number of Circles 56 72 52 33
Standard Covered Length (m) 8-9 11-13 8-10 8
Maximal Covered Length 12 15 13 12
