PVC Coated galvanized IRON Barbed Wire

Plastic coated barbed wire is widely used  in safety protection, border and boundary fencing, fencing walls, chain link fencing systems, field fencing and so on. We offer galvanized barbed wire with PVC coating treatment, mostly in green coating. PVC coated barbed wire is normally used with pvc coated mesh panels of the same color to form a fencing system.

Technical Info:
- Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
- A variety of PE/ pvc coating colors:green, biege, white, blue, yellow, orange, gray, is available.
- Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
- Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

Well Sold Models

Barbed Wire Fencefor Transmission Line Towers Safety

Supplied to Sri Lanka.
The specification: Barb spacing – 75 mm; Barbed line length 15mm
Supplied in Bundles of Green Colour(RAL 6005 Green).

Tubular Steel Posts and Barbed Wire Fixed in Lines for Border Security

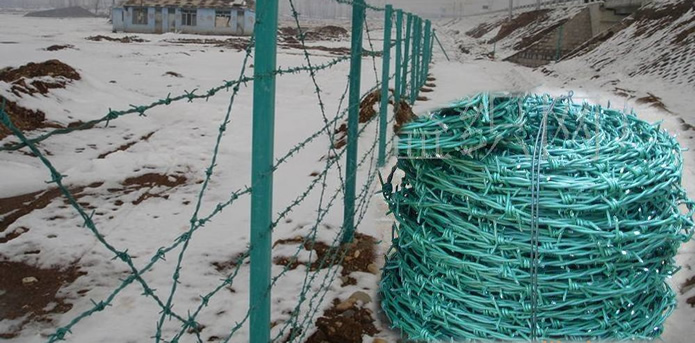

Hot Dipped Galvanized Zinc Pvc Coated Barbed Wire, Double Twist

Hot dipped or electric galvanized zinc pvc coated Wire Barbed, 450 mm coil diameter, 50m roll length, for grassland barrier fence. Traditional Twisted Double Barbed, Wire Gauge 2.0×2.0mm, Barb Spacing 4" to 5", Fixed with PVC Coated Steel Round Pipe Post with Hooks

Galvanised Steel Wire Barbed:
Galvanised steel wire
Double Twist
Barbed spacing 4''
1 roll x 50m

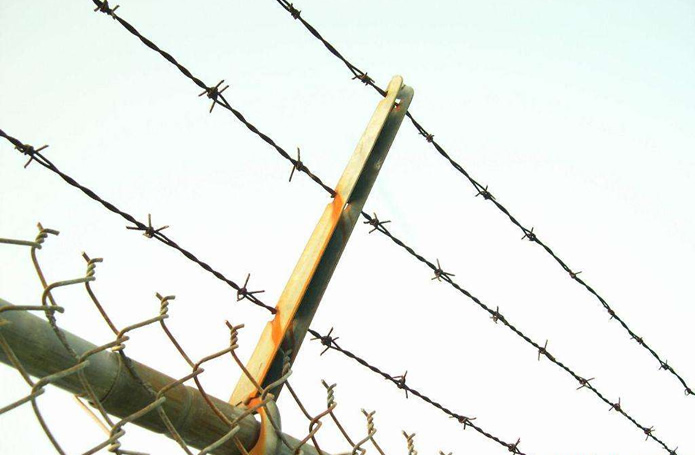

PVC Coated Steel Fencing Y Post Barbed Wire

Boundary Security Mesh Fence Post With Barbed Wire: High security double strand type with 4 points, barbs spaced 7.5 cm apart. Barbs are sharp and tightly wrapped, twisted 12.5 gauge line steel wire, uniformly coated with zinc hot dip galvanized in accordance with ASTM A-121 Class3 and also PVC coated in green. Used with chain link netting panels.

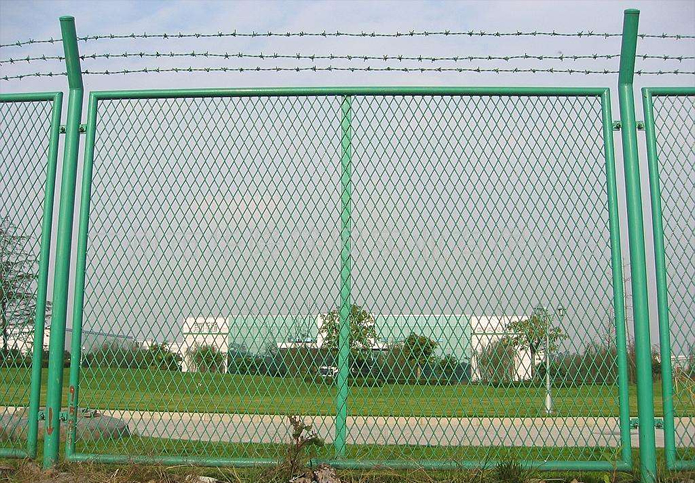

Green Painted Expanded Mesh Modular Fencing Panels, with Tubular Posts, Three Lines Green Painted / Coated Barbed Wire Tops

Strand Barbed Wire and Flat Expanded Steel Mesh Fence (Diamond Hole), both green coated: Perimeter Fencing System for schools, residences, etc. Specifications: (-Barbed Wire, Heavily Galvanized 16 GA, (500 CAL.16 2/4/4" coils).

PVC coated Barbed Wire, RAL 1014 Beige

Specification exported to Qatar

PVC coated barbed wire
2 twisted wires with 4 spikes, spaced 65 mm - 120 mm apart from each other.
Inside wire: galvanized wire.
PVC coating thickness: 0.4 mm - 0.6 mm.
Color: Beige
Twisted wire diameter:
Inside wire diameter: 2.4 mm - 2.6 mm.
Outside wire diameter: 3.0 mm.
Thorns /Barbs wire diameter: 1.5 mm
Package: 250 m, to 400 m/coil, 30-50 kg/coil.

PE and PVC Coated BARBED WIRE ( 2 strands and 4 points and 3-4-5-6- inches)

Core Wire Diameter	Outside Diameter
1.0mm-3.5mm BWG.11-20 SWG. 11-20	1.4mm-4.0mm BWG. 8-17 SWG. 8-17
Note: Thickness of P.V.C. coating layer: 0.4mm-0.6mm
