SS Barbed Tape Concertina Coils have high tensile cored line wire spirally coiled. Barbs are fixed at regular intervals. The turns of the concertina coils are inter-connected at regular distances around the circumference by means of clips, to form diamond meshes upon extension. When extended to its full length, the concertina coil unfurls easily and provides a cylinder-like barrier.
Materials: Mainly AISI stainless steel 304, 316 and other SS grades. SS concertina barbed tape offers superior corrosion resistance over galvanized razor barbed ribbons.
Main Market: United Kingdom, Singapore, Philippines, USA, Middle East Countries, etc.
Barb Sizes Applied for Razor Barbed Tape
| A1 |  |
. Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:10mm . Barb Width:13mm . Barb Spacing:26mm |
| A2 |  |
. Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:20mm . Barb Width:15mm . Barb Spacing:33mm |
| A3 |  |
. Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:15mm . Barb Width:15mm . Barb Spacing:33mm |
| A4 |  |
. Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:22mm . Barb Width:16mm . Barb Spacing:36mm |
| A5 |  |
. Thickness:0.6mm . Wire Dia.:2.5mm . Barb Length:60mm . Barb Width:22mm . Barb Spacing: 102mm |
Export to UK and Singapore, USA, other countries. For marine services and fencing barrier uses.
1) Concertina Coils: 12 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304
Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 3 x Wire Tie Rachets
e) 1000 x 12” Stainless Steel Wire Ties
f) 1000 x 6” Stainless Steel Wire Ties
g) 10 kgs Extended Dovetail Clips Stainless Steel
h) 2 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base
2) 10 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304
Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 3 x Wire Tie Rachets
e) 1000 x 12” Stainless Steel Wire Ties
f) 1000 x 6” Stainless Steel Wire Ties
g) 10 kgs Extended Dovetail Clips Stainless Steel
h) 2 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base
3) 50 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304
Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 6 x Wire Tie Rachets
e) 3000 x 12” Stainless Steel Wire Ties
f) 3000 x 6” Stainless Steel Wire Ties
g) 20 kgs Extended Dovetail Clips Stainless Steel
h) 4 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base
4)75 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304
Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 6 x Wire Tie Rachets
e) 3000 x 12” Stainless Steel Wire Ties
f) 3000 x 6” Stainless Steel Wire Ties
g) 20 kgs Extended Dovetail Clips Stainless Steel
h) 4 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base
10 x 730mm x 10 mtrs coil Barbed Tape, Short Barb, in Stainless Steel 304, for UK

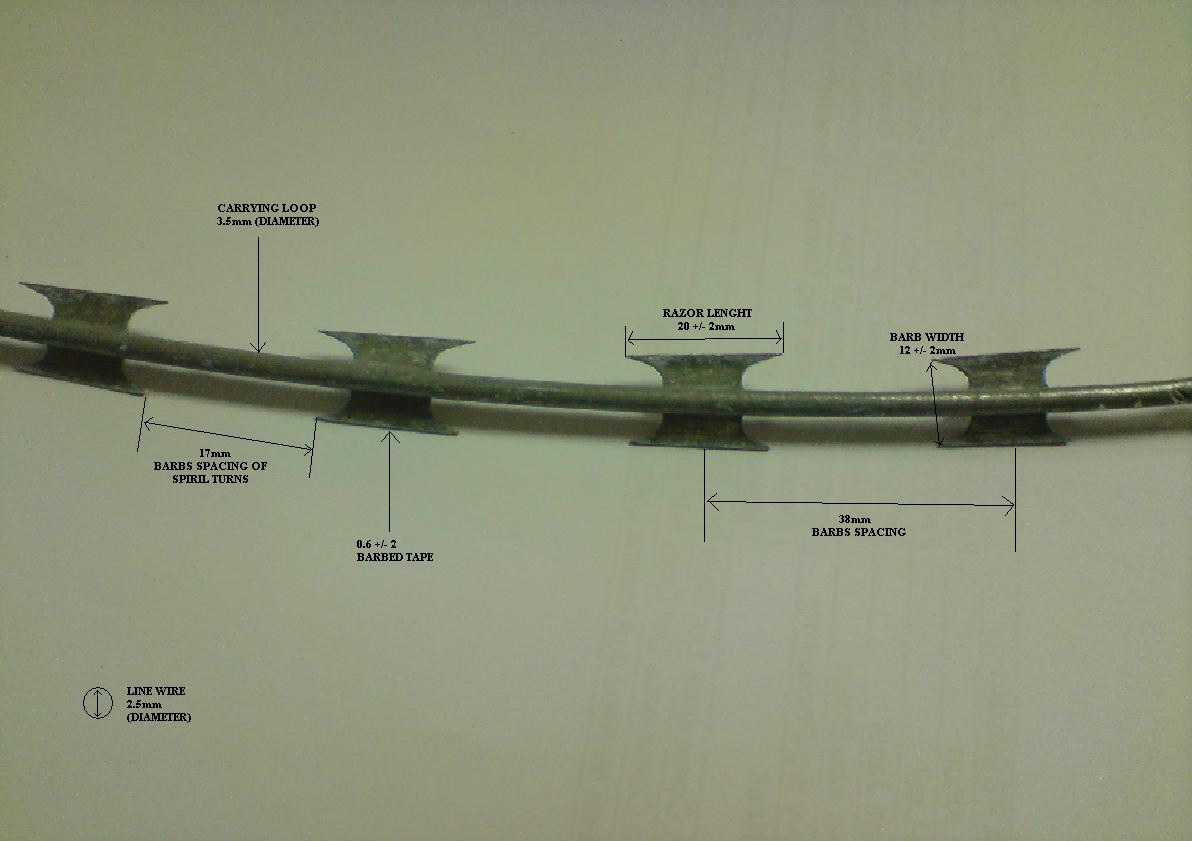

Illustration of Razor, Barbs Spacing, Barbed Tape and Loops:

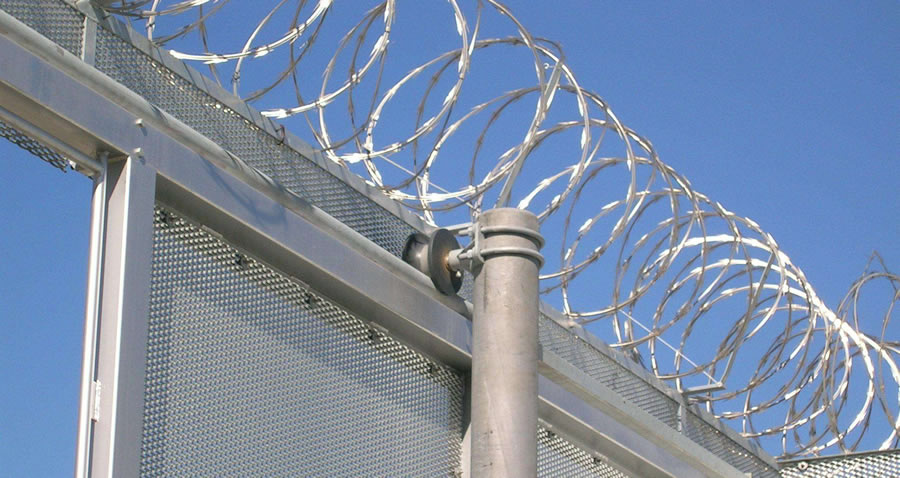

Material Grade: SS 316
Stainless Steel (316) crossed concertina G2 coil.
Coil Diameter is 800 mm (BTO-18)
Supplied with Stainless Steel (316) barbed wire
For Singapore.

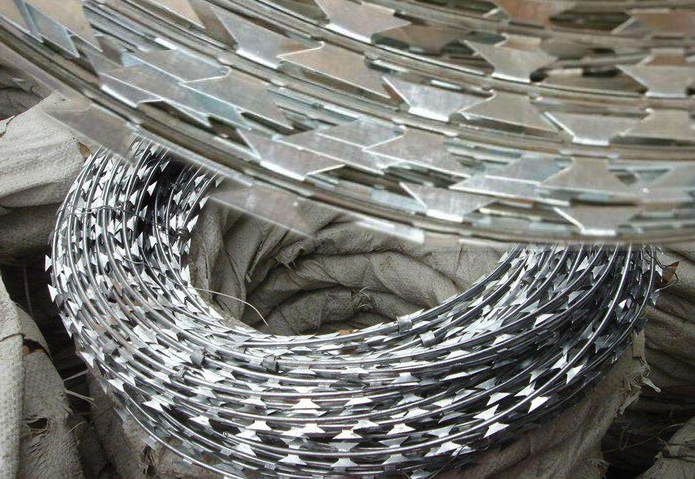

30” diameter barbed tape concertina (BTC),
stainless tape, stainless core, medium barb
Detial Specification:
- Coil Diameter: 30’’
- Spirals Per Coil: 56
- Row of Clips: 3
- Length per Coil: 50’
- 2.4 mm dia. High tensile (1500mPA) stainless core wire
430 Grade SS Tape
AISI 430 stainless strip hardened, cold clenched 230 degrees around 0.098 inch diameter stainless cored wire.
2.5 inches long barbs in groups of 4 at 4 inches o.c.
In concertina wire.
50 feet as standard coil or custom sizes.
For
USA
Concertina Barbedwire Coils for Kuwait, Jordan and Tunis
Models: Concertina barbed coils
Outside diameter: 1 meter.
Coil length: 20 meter.
Concertina Barbed Wire in Coils, Single Strand, 3 mm Dia high tensile Wire, With 4 Point
Barbs at 80-90mm centers, Barbs of 2 mm Dia (14SWG) Galvanised Wire Zinc Plating.
Coating of 80-150 grams per Sq. Meter;
55 spirals per coil;
With alternate turn joined with ‘C’ clips at 5 places per spiral.
Coil Dia when stretch in cylindrical form to 15-meter length, 820mm (32 inches) height from the ground.
Razor Barbed Tape Concertina:
Form: Cross Type
Barbed Tape 500mm Diameter Coil,
Blade:
BTO-10, 15, 22
Packing: in Coils
Export market: For Nigeria.

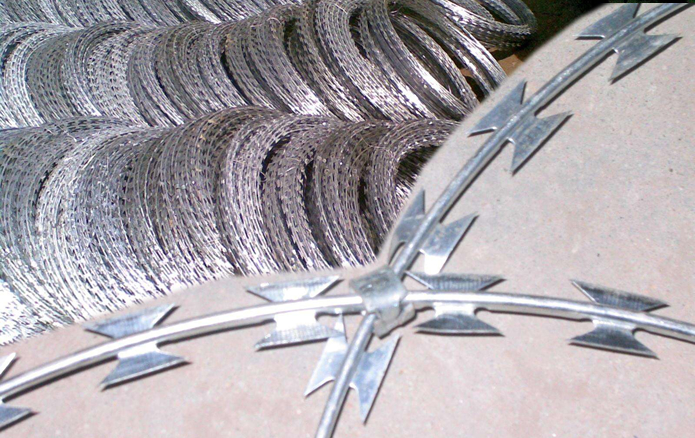

AISI 304 Cross Concertina Razor Barbed Wire Tape for Nigeria and Other African Countries. Galvanized barbed tape concertina coils also supplied, with a thickness between 0.5 - 0.55 mm.

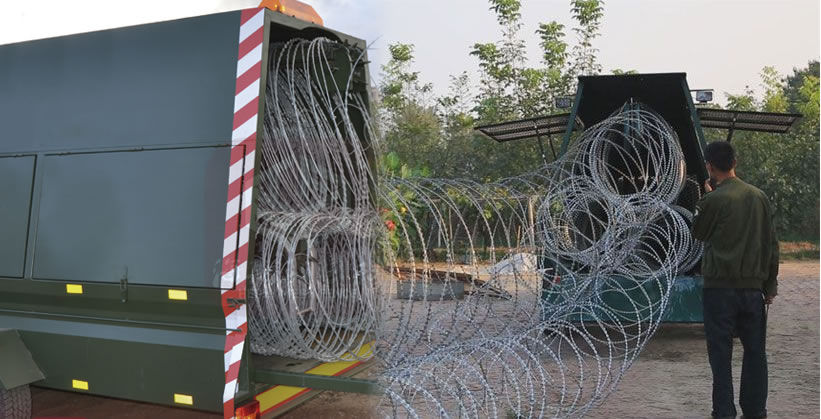

3SD Ripper Barbed Tape Wire
Specifications:
1.Tensile strength of the wire: min.220,000 psi.
2.Wire configured in triple coils of barbed tape rolls positioned with two rolls at the base and one roll on the top of base rolls.
3.Barbed tape shall be designed to deploy from 3SD trailer based.
4.Diameter of the base coils is 73cm and top coil is about 98cm.
5.Mounted on 3SD trailer. 4 modules be mounted at a time to lay triple coil wire automatical spread over an area of 30 seconds.
6. Each module is supplied with 2 handling frames and connection fixing.
7. Quickly deployed.
Reusable.
8. Barbed razor ribbons / tapes is connected in coils to form a pyramid and the coils are individually separated with high tensile wires.
9. Barbed wire meet the standard of related military services specifications or equivalent.
AMERICAN SOCIETY FOR TESTING AND MATERIALS INTERNATIONAL.
- ASTM A240/A240M. Standard Specification for Chromium and ChromiumNickel Stainless Steel Plate, sheet, and Strip for Pressure Vessels and for General Applications, 2020.
- ASTM A478. Standard Specification for Chromium-Nickel Stainless Steel Weaving and Knitting Wire), 1997, R 2019.
- ASTM A580/A580M. Standard Specification for Stainless Steel Wire, 2018
- ASTM A666. Standard Specification for Annealed or Cold-Worked Austenitic Stainless-Steel Sheet, Strip, Plate, and Flat Bar, 2015 x ASTM A764. Standard Specification for Metallic Coated Carbon Steel Wire, Coated at Size and Drawn to Size for Mechanical Springs, 2017
- American Society of Testing Materials (ASTM) A 641-82 – Specifications for Zinc Coated (Galvanized) Carbon Steel Wire, or equivalent
- American Society of Testing Materials (ASTM) A 475 – Zinc Coating Weight for galvanized Wire, or equivalent
U.S. DEPARTMENT OF DEFENSE. DOD
- UFC- UFC 4-022-03, 1 October 2013, Security Fences and Gates: Barbed wire, 2013.
- MIL-A-A-59924. Barbed Tape, Concertina (wire reinforced long barb), 2013
- MIL-A-A59926. Barber Tape, Concertina (Non-reinforced long barb), 2013
Check less frightening Non-Razor Barbed Wire in Galvanized or PVC Painted Finish, also mesh panels to work with barbed tapes.
