Galvanized Razor Mesh Fence Panels and Y Posts

Razor wire mesh fence and “Y” posts are often used together to construct a fencing project.

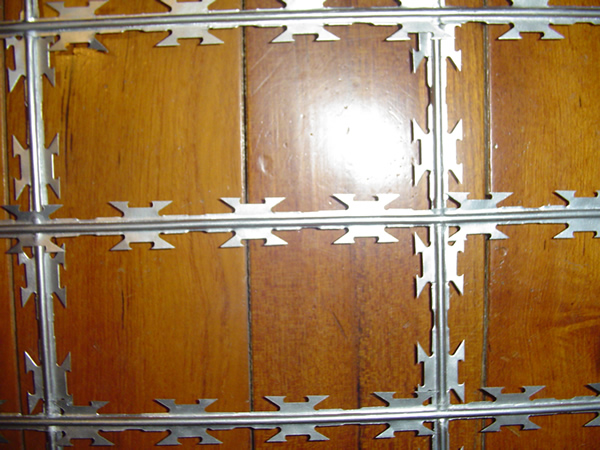

Galvanized Razor Mesh Fence Panels

Hot dipped galvanized razor mesh fence panels 15 x 7.5 cm

Technical specifications:
Sheet / panel width 3 meter, panel length 2meter
Razor mesh material: Galvanized wire (as drawing) with the thickness of 2.5+-0.1mm, approximately 200g/m2 hot dipped zinc coating, tensile strength 160Kg/mm2
Opening (as drawing) of rectangle shape of the galvanized razor mesh fence: 15 x 7.5 cm
Blade: Galvanized blade of 0.5+-0.05mm, with approximately 70µ or 200g/m2 hot dipped zinc coating
Blade type: Cupped type (as drawing) , in angle of 270 degrees with the main wire
Material options: Stainless steel AISI 304, SS 430.

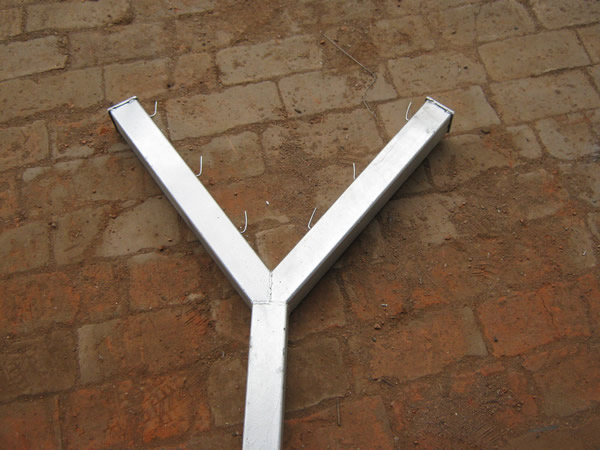

Galvanized Y shaped pickets:

Hot dipped galvanized steel pickets with Y shaped arm for support razor fence

Supplied with the following specifications:
Post length 2.5 meter with Y arm
Corrosion protection finish: approximately 400g/m2  hot dipped zinc coating
Dimensions of supporting picket: 60X60mm
Thickness of profile: 2.35 mm
Y arm size: 60x60mm (as drawing)
Thickness: 2mm
Each arm length: 50cm
8mm Screw: min 12 unit for each picket / post
Plastic Cap resistance against UV: 2 units per Picket
Galvanized steel cap: 2 units per y arm
Galvanized Clamps (as drawing) minimum 6 unit per Picket

Galvanized steel clamps with 8mm screws for pickets fixing
The holes diameter: 7mm each pickets with 6 holes
6 hooks (3 on each arm) welded to the y posts for barbed wire
All the welding and other processing are done on the posts before the galvanizing process. (the welding points must be cleaned properly before the galvanizing process)

Company’s quality certificates and records of our past performances for projects, our the production line and workshop information can be provided upon request.
Razor mesh weld fence panels are also used with other steel fences ( chain link, weld 358, etc. ) to form a high security fence system.
Materials are hot dipped galv. steel, ss or powder coated.
