Hinged Fencing Mesh: Articulated Mesh and Barbed Wire Fencing for Plantations and Farms

Hinged fencing mesh used with barbed wire, is a versatile fencing system designed for security and boundary fencing in agricultural farms and plantations.

This articulated mesh and barbed wire fencing is a durable, reliable perimeter security solution for plantations, agricultural properties, livestock enclosures, and wildlife management areas.

The fencing system serves to safeguard crops and assets, deterring theft and vandalism while allowing easy monitoring of plantation activities.

Features:

1. Security: The hinged fencing mesh, combined with barbed wire, offers enhanced security for the perimeter deterrent against unauthorized access and intrusion.
2. Durability: Constructed from hot dipped galvanized steel materials, ensuring longevity and resistance to weather conditions.
3. Flexibility: The hinged knot design enables adaptation to various terrains and contours of the landscape and easy installation.
4. Visibility: Articulated mesh panels provide visibility while maintaining security, allowing surveillance of the enclosed area.

Material: Hinged knot mesh fencing made from high-quality galvanized steel wire.

Common applications for hinged knot mesh fencing: Perimeter security for plantations, agricultural farms, livestock enclosures, and wildlife fencing.

Hinged fencing mesh and barbed wire combined system for  perennial plantations

Technical specifications:

Fencing mesh:
Articulated mesh in rolls for fencing of perennial plantations with concrete stands
Base type : Galvanized hinged mesh, spacing 20x20cm with progressive mesh height
Material : Zinc-coated steel
Diameter of upper and lower strapping : 3.0 mm
Internal strapping diameter: 2.0 mm
Height of the fencing mesh : 1.5 m
Length of the fencing mesh in 1 roll, Liner meter (lm) : 50 lm

Concrete stands
Size of stands, cm : 10x8 cm
The height of the concrete stand, m : 2.0 m
Rebar (armature) : class A3
Concrete grade, : M200 (B20.5)

Heat-treated tying wire for securing the fencing mesh
Material: steel, zinc-coated
Type of wire : Heat-treated wire (tying)
Diameter of wire in mm : 2.1 mm

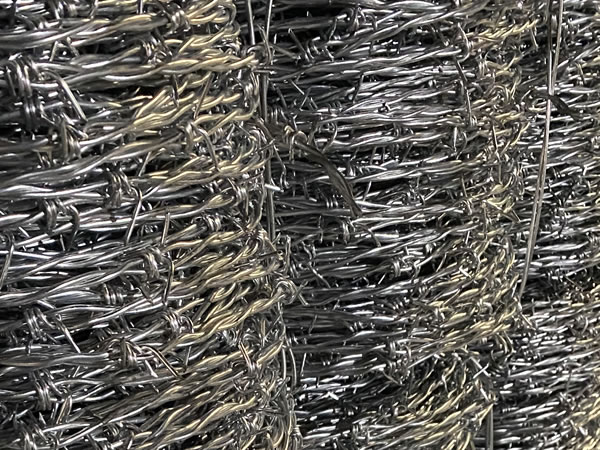

Barbed wire coils for fencing tops

Wire type : zinc-coated steel
Diameter of the base wire : 2.5 mm
Diameter of the barb wire : 1.8-2.0 mm
Distance between prickles (thorns) : 75 - 100 mm
Weight of 1 meter of barbed wire) : 87.5 grams

We supply a variety of combined safety system by hinged knot fence and barb wire, for agricultural fencing:
