Solar Fence is also known as PV Area Fence, Photovoltaic Security Fence or Solar Perimeter Fencing.
This fencing is specifically designed as Solar Array Enclosure to enclose and protect photovoltaic (PV) area, providing security, safety, and delineation of boundaries.
Solar Fence is used to secure the perimeter of a solar array or solar farm. It serves mainly two purposes:
Security: Solar Fence is to prevent unauthorized access to the PV area, to protect solar panels and associated equipment from theft or vandalism.
Safety: Electrical equipment and wiring in solar farms can pose a safety hazard to individuals or wildlife. A PV area fence helps keep animals and unauthorized personnel out, reducing the risk of accidents, or damages.
Solar Fencing Materials:
In solar fence system, materials used include chain link fencing, metal panels, mesh panels, or solid barriers, commonly topped with galvanized steel double stranded barbed wire.
Solar Fencing Project for UAE PV Facilities Security:

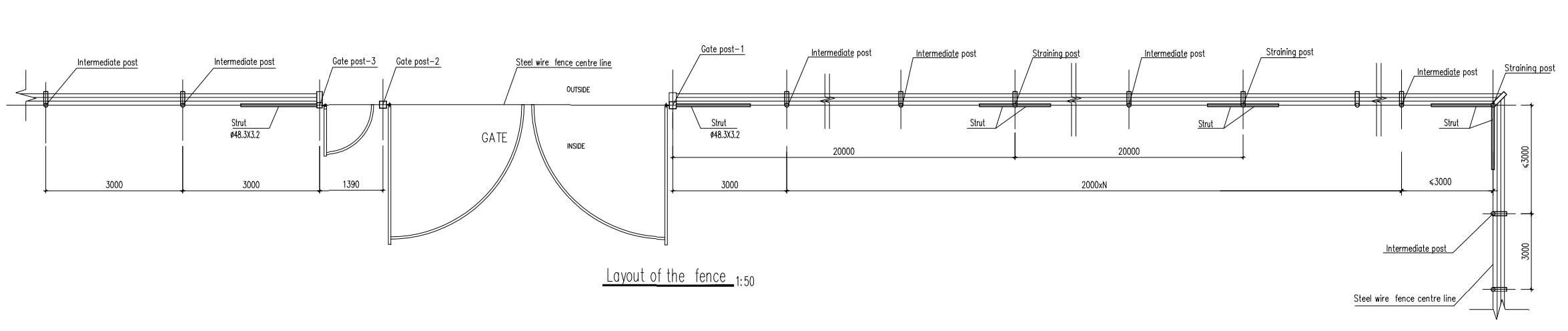

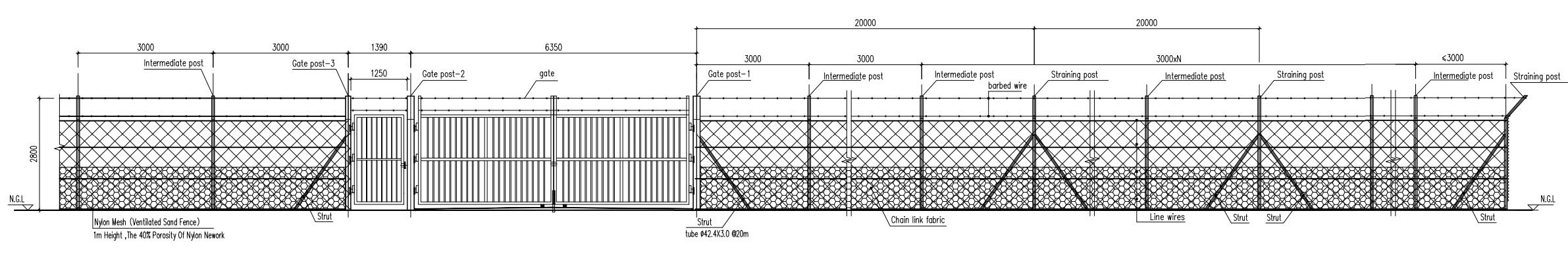

This PV boundary fencing system is composed with RAL 6005 green coated steel chain link fabric 50x50mm mesh, 3 coils barbed wire, nylon mesh and fence accessories.
| 1 | Line Wire 4.75 Mm | 77000 | Mtr |
| 2 | Barbed Wire 1.8 mm | 38500 | Mtr |
| 3 | Nylon Mesh (Ventilated Sand Fence) 1 Mtr Height, 40% Porosity | 19500 | Mtr |
| 4 | Chain Link Fence 3.0/4.0 mm thick wire fence, Height 2.5 Mtr (PVC coated) 50x50xmm MESH (Green Colour RAL 6005) | 19100 | Mtr |
| 5 | Line Wire 2.2 Mm | 9000 | Mtr |
| 6 | SS 316 Hex Head Nuts and Hex Head Bolts M8 mm x 50 mm with Washer | 55000 | Nos |
| 8 | SS 316 Eye Bolts M10 mm x 150 mm with Washer | 14000 | Nos |
Installation of Post,Barbed Wire,Chain Link Fabric and Nylon Mesh
Fixing Fence Posts with Nuts, Bolts, Brace and Clamps
Barbed Wire
Razor Barb Wire
Fencing Wire Mesh
